Deep Bed Filter Manual Valve

Price range: ฿ 1.118,00 through ฿ 5.198,00

Manual Multimedia Filter Valve
Features:

Valve Position

Way

Function

FILTER

 1

In service (filtration) status, it’s normal filtration

FAST RINSE

 2

In Fast rinse status, it flushes out dirt after backwashing

BACK WASH

 3

In backwash status, it cleans the filter media by reversing the flow
Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.
SKU: HTF56 Categories: ,
Model Description Rated Flow  Backwash
Flow Rate		 Base
Connection		 Center pipe Valve Connections
m³/h GPM Inlet/Outlet Drain Brine Line

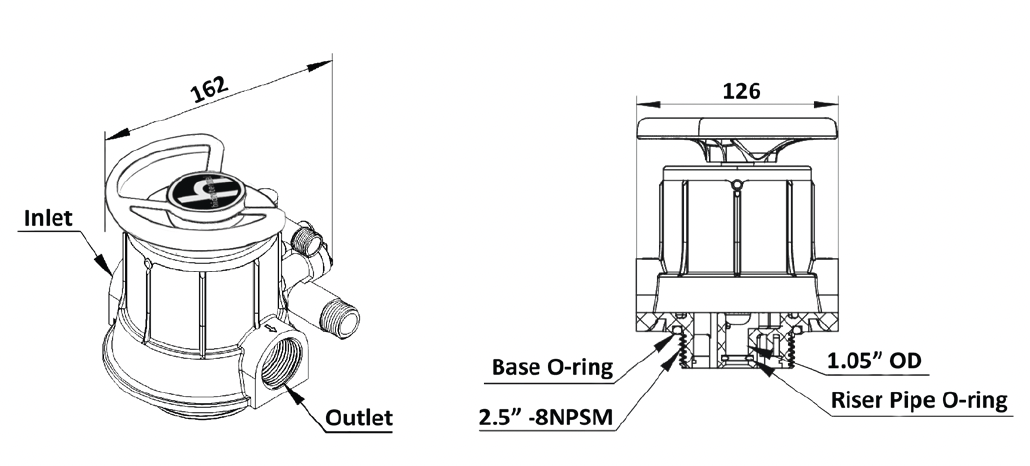

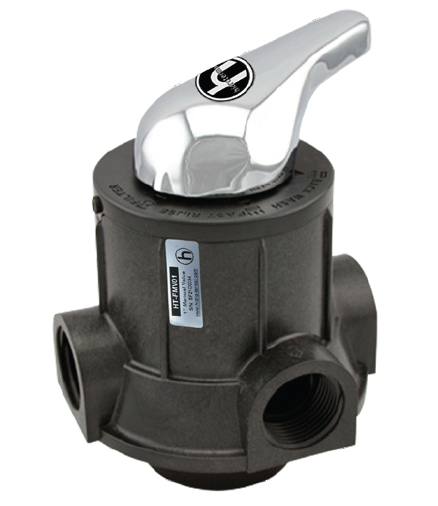

HT-FMV01  Filtration Manual Valve 4 17.61 4 2.5″- 8 NPSM 1.05″ – 26.7mm 1″F/32mm 1″F/32mm –

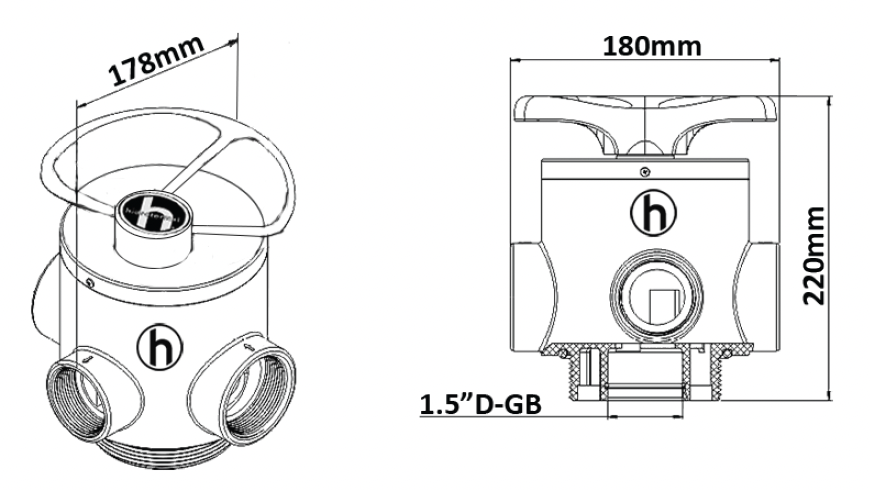

HT-FMV02 Filtration Manual Valve 10 44.03 10 4″- 8 NPSM 1.5″ – 50mm 2″F/63mm 2″F/63mm –

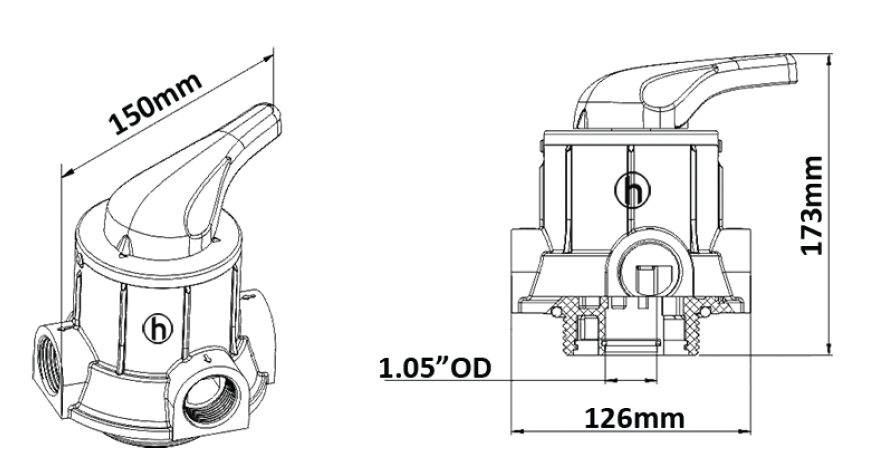

HT-SMV01 Softener Manual Valve 4.5 17.61 4.5 2.5” – 8 UN 1.05″ – 26.7mm 1″F ½”M ⅜”M

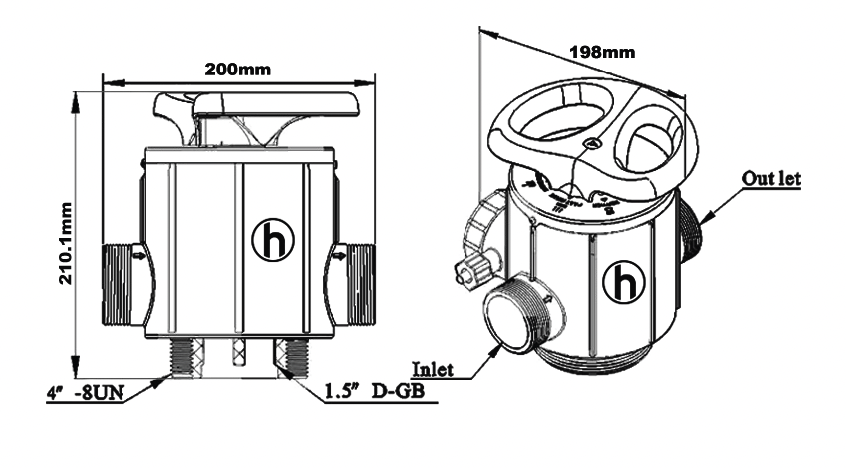

HT-SMV02  Softener Manual Valve 10 44.03 10 4” – 8 UN 1.5″ – 50mm 2″M 1″M ½”M

HT-FMV01

HT-FMV02



HT-SMV01



HT-SMV02

Additional information

Weight N/A
Dimensions N/A
Model

HT-FMV01, HT-SMV01, HT-FMV02, HT-SMV02
