Swimming Pool UV Sterilizer P Series

฿ 9.998,00฿ 19.998,00

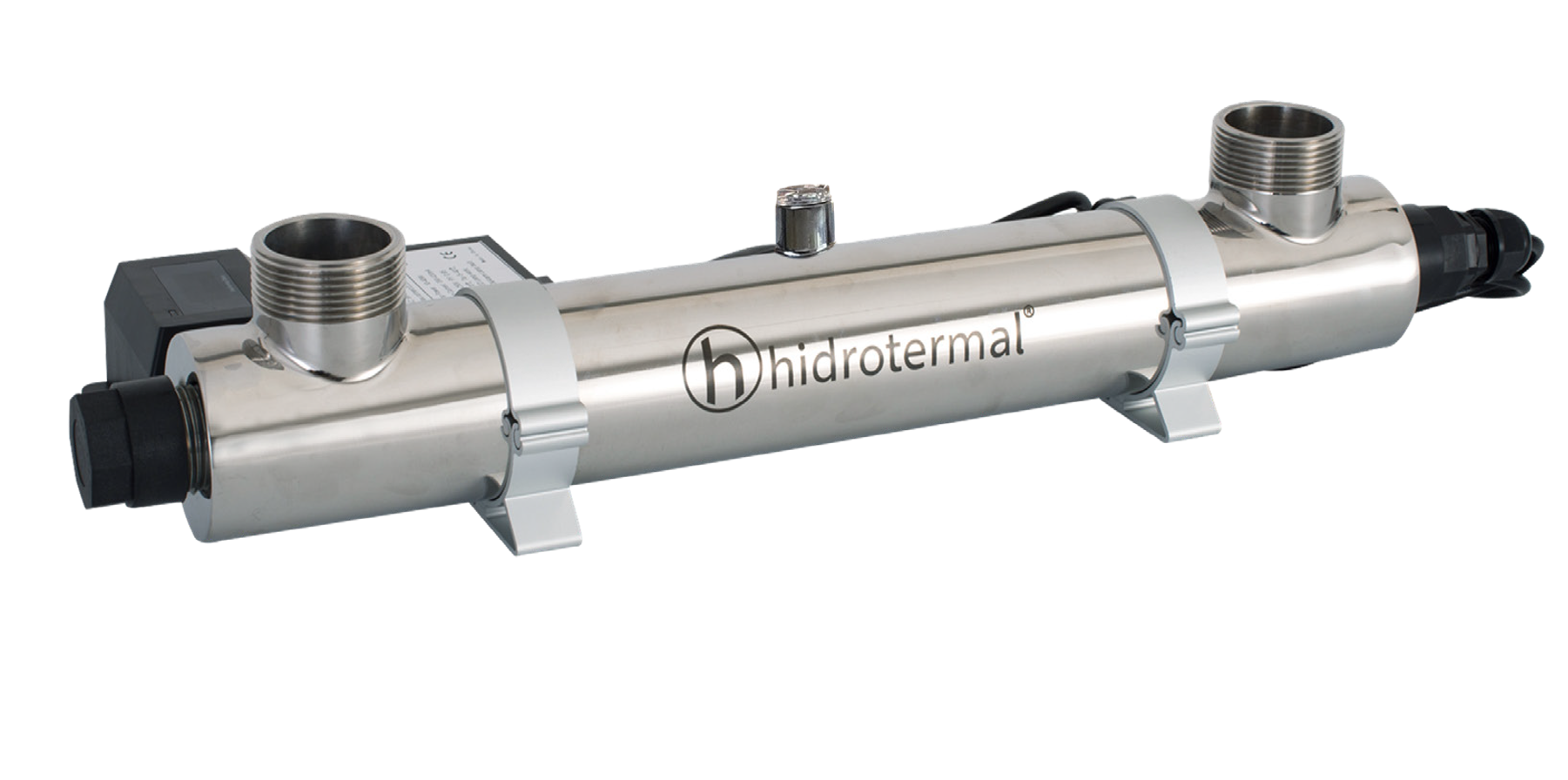

Hidrotermal’s Stainless AISI316 UV-C Sterilizers are made of the highest grade stainless steel with a greater durability and which allows a more efficient UV-C effect against the DNA of bacteria.

High output UV lamps guarantee effective disinfection with long life span from 8.000 to 12.000 hours of continuous service.

Our UV equipment is suitable for saltwater disinfection, aquariums or any type of aquaculture and fish farming, ponds, swimming pools, artificial waterfalls, water treatment plants, etc.

Features:

  • Voltage adjusting ballasts which allow more operational stability.
  • World-Class UV lamps with a long lifespan.
  • Flexible assembly parts for easy installation and operation, matching with any system.
  • Compact design and low energy consumption ratio.
  • Automatic fault detection and alarm.
  • Recommended ambient temperature: 5-40C
  • Voltage: AC100-240V/50-60Hz.
  • Chamber resistance pressure  up to 0,7Mpa.
  • Anti Rust Electro-polished chamber surface.
  • Mechanical mirror polishing.
  • Timer included.
  • Stainless Steel AISI-316
Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.

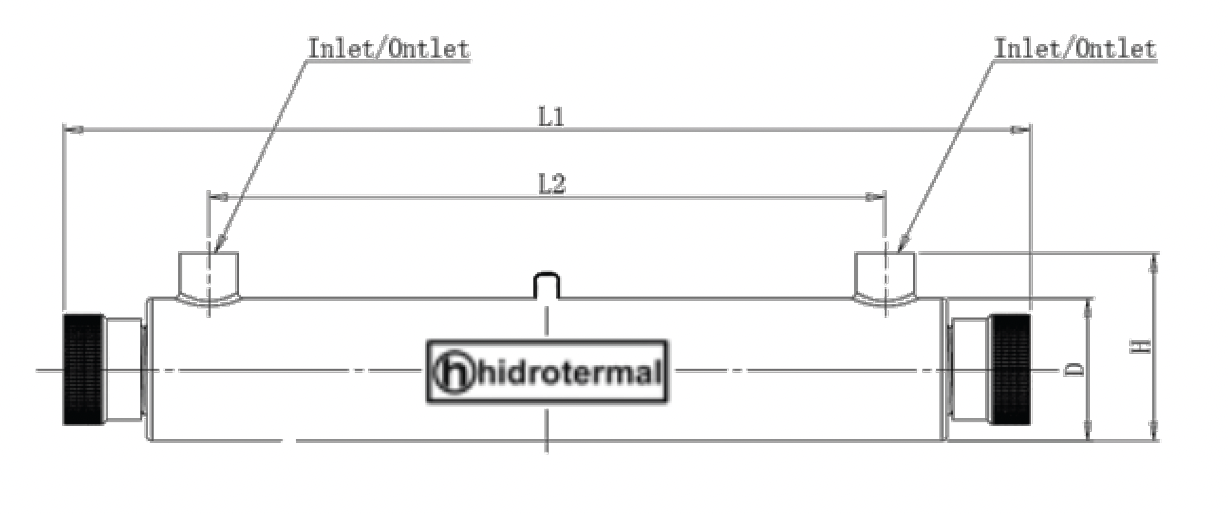

 Model No.      Flow rate                 (30mj/cm²)    Lamp           Watts      Qty.           Lamps     Total             Power        Inlet/Outlet          Reactor Dimension(mm)
    GPM   M³/h     L1    L2     D     H
UV-P25W     31        7   25W         1      25W 1.5″ outer thread  510  400  63  95
UV-P40W     88      20   40W         1      40W 1.5″ outer thread  975  860  76  108
UV-P80W     88      25   80W         1      80W 2.0″ outer thread  975  820  101  135



* Size are in mm





Additional information

Weight N/A
Dimensions N/A
Model/Flow

UV-P25W/7m3/Hr, UV-P40W/20m3/Hr, UV-P80W/25m3/Hr
